NFC / contactless test system

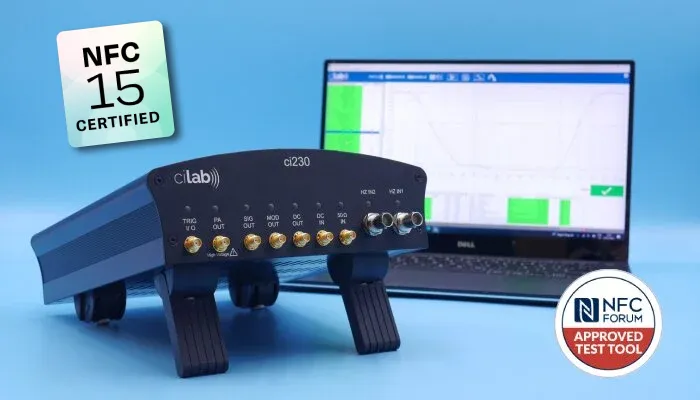

ci230 — the world's fastest NFC test system.
One integrated instrument for EMV®, NFC Forum, NFC-WLC and ISO 10373 — certification, pre-compliance and R&D — that decodes the protocol and measures absolute analog from a single test antenna.

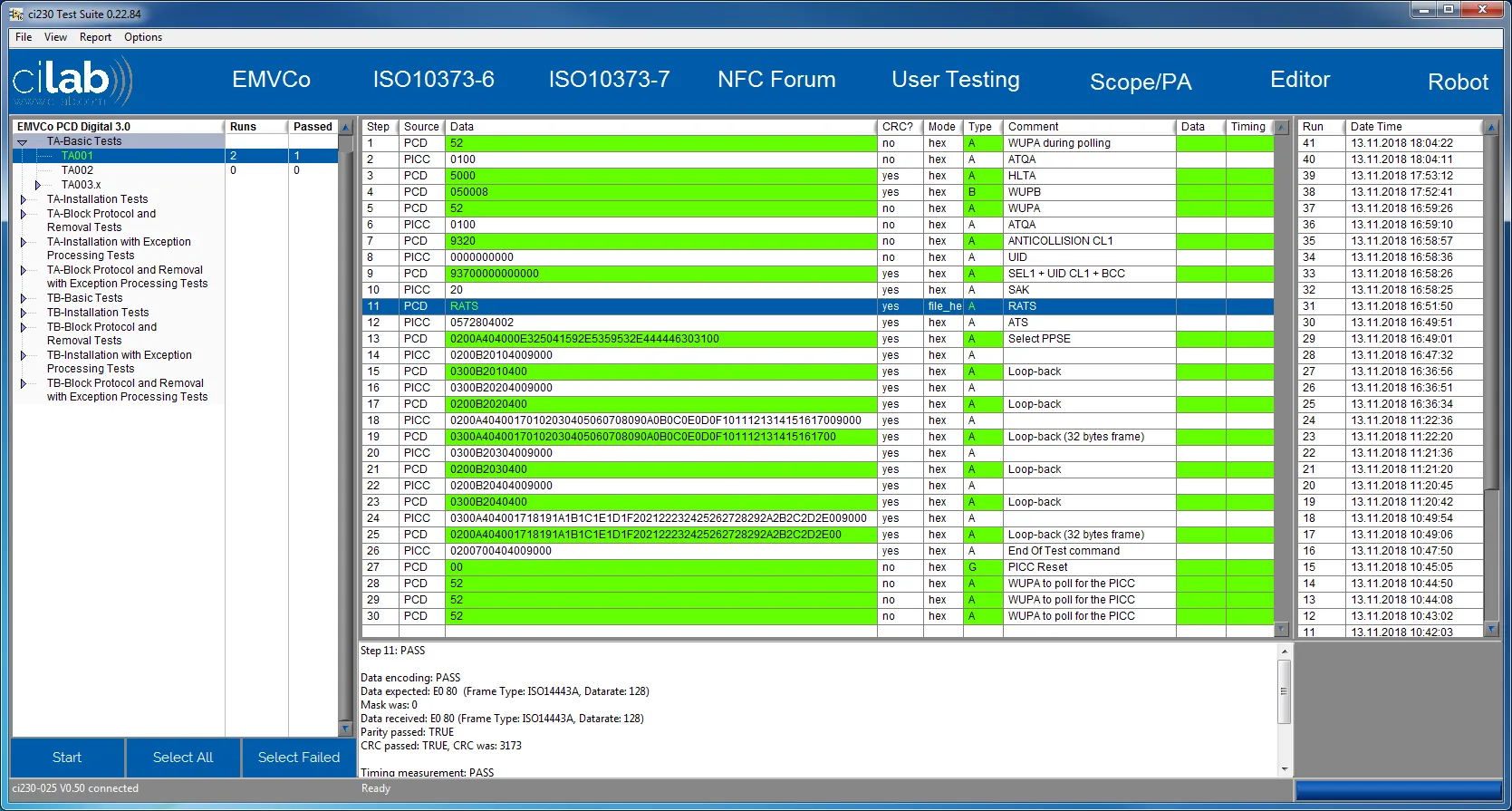

One screen, every standard
All the test benches you certify against — in one application.
NFC Forum (CR15)
Poller and Listener analog & digital, including WLC.
EMV® L1
PCD and PICC analog & digital, EMV® 3.2a / 3.2b.
NFC-WLC
Wireless-charging Poller / Listener (TR13.x).
ISO/IEC 10373-6/-7
PCD and PICC / VICC reference-method testing.
BSI TR-03105
eMRTD and eID contactless conformance — e-passport and ID-document testing, to ISO/IEC 18745-2.
Dive deeper into EMV® L1, NFC Forum CR15 and ISO 10373-6 — pair the ci230 with our calibrated reference antennas, or read how it decodes with no sniffer antenna.
All-in-one
One instrument. Nothing external.
- Wideband power amplifier covering all standards — no external PA
- Built-in oscilloscope — no external scope
- Internal attenuators — none at the PA output to add or cable
- Signal generator, signal processing and automation software — one instrument
Deep debug
Measure what others can't.

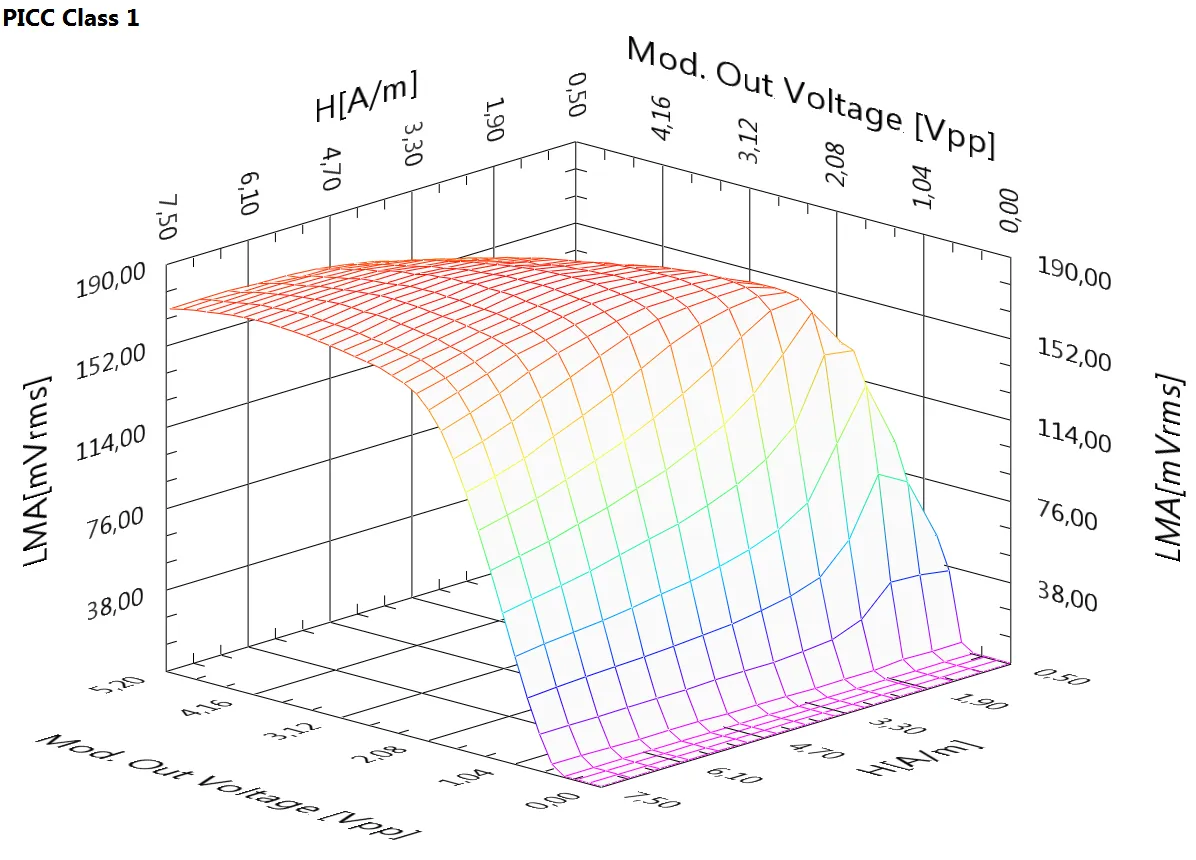

- Shmoo / 3D RF-field plots to visualise dead spots

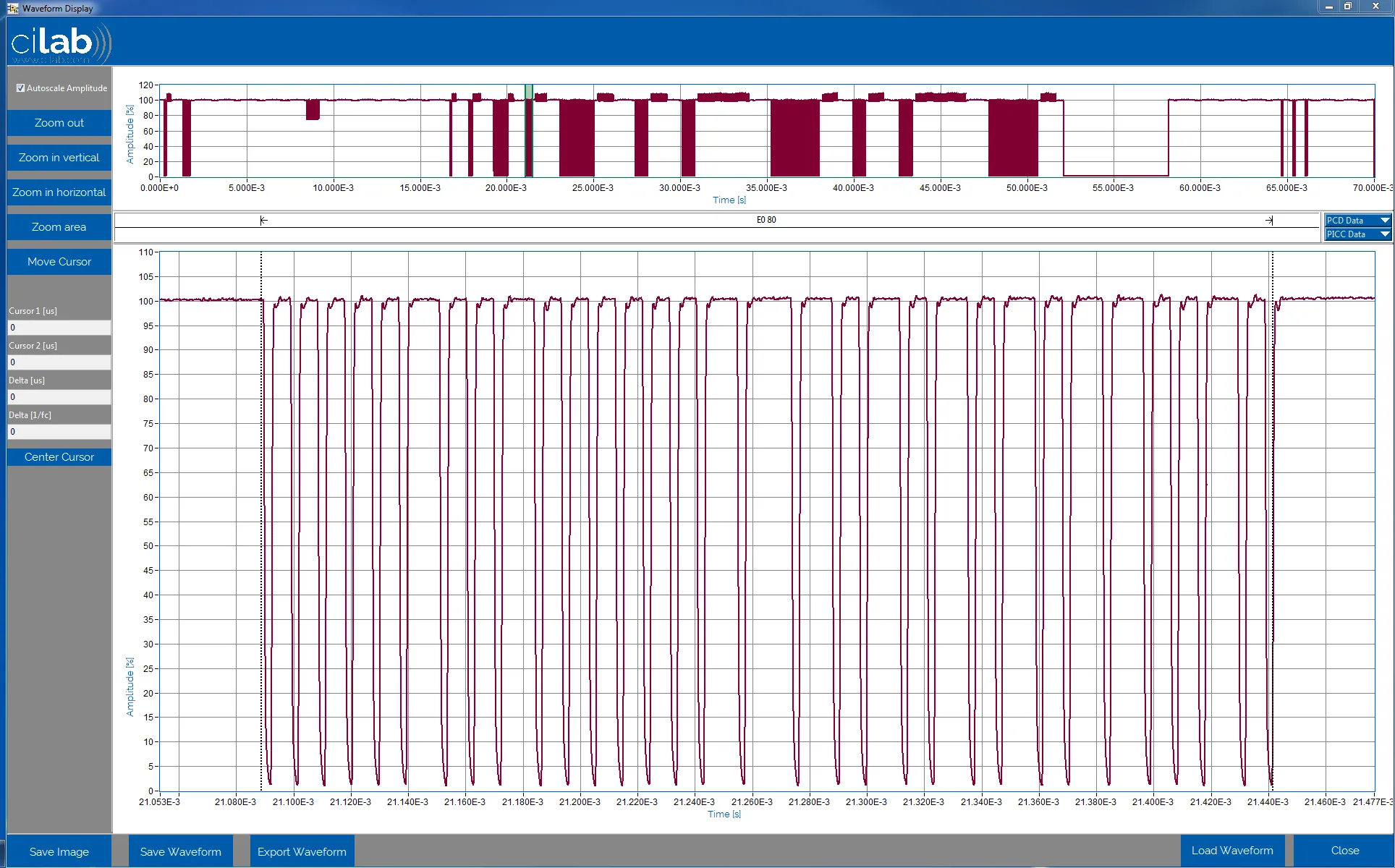

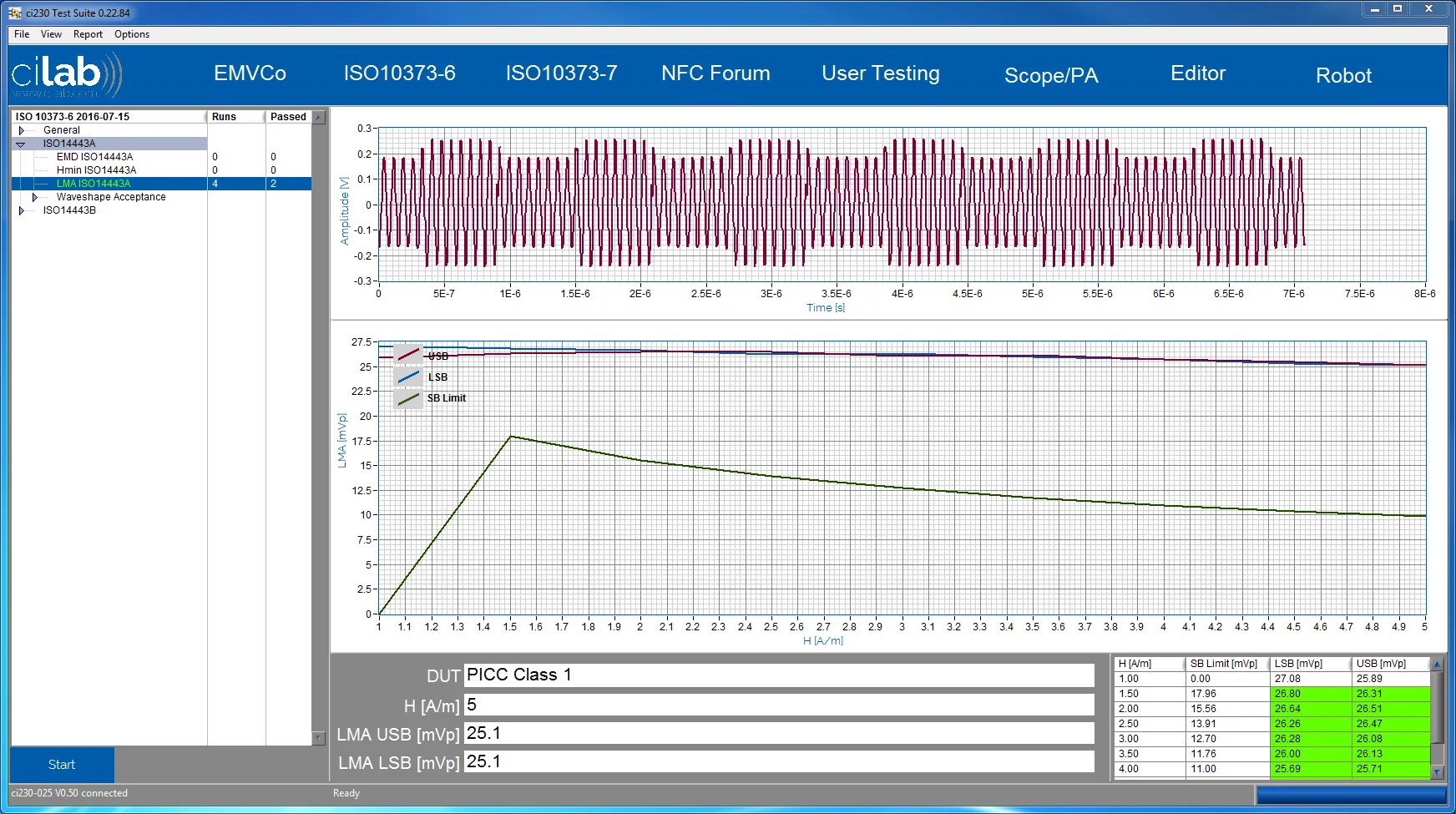

- Live waveform and load-modulation (LMA) display
- Absolute receive sensitivity with margin to limits
- Stop-on-fail capture — record exactly when a case fails
At a glance
ci230 specifications
| Supported standards | NFC Forum CR15, EMV® PCD 3.2a / PICC 3.2b, ISO/IEC 14443 A/B (2018), ISO/IEC 15693, ISO/IEC 18745-2 / BSI TR-03105, NFC-WLC |
|---|---|
| Carrier frequency | 13.56 MHz — all major contactless standards |
| Test speed | Hundreds of certification test cases in minutes; a full RF-field scan in ≈ 10 minutes |
| Use cases | Certification, pre-compliance, product development, debugging |
| Measurements | Absolute analog with margin to limits, receiver sensitivity, load modulation, field strength |
| Automation | Remote Control Interface (RCI) over TCP/IP (LAN / USB); unified robot control (Denso, Stäubli, Dobot) |
| Calibration | In-house ISO/IEC 17025 accredited — 7–10 day typical turnaround, guaranteed within two weeks |
Test smart. Certify easy.
See the ci230 run your standard and decode a live transaction — with no sniffer antenna on the bench.
Talk to an expert
