Contact test system

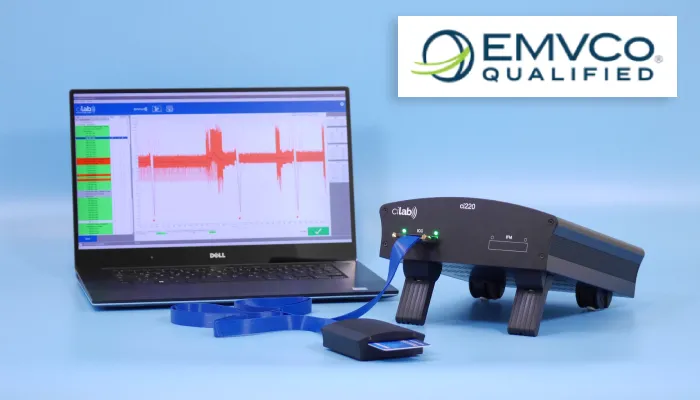

ci220 — high-speed contact test system.
A high-speed test system for ISO/IEC 7816 contact smart cards — electrical and protocol characterization and conformance, and the contact counterpart to the ci230's contactless coverage.
What the ci220 does
Where the ci230 covers the contactless interface, the ci220 covers the contact interface — the gold-contact chip used in SIM/UICC, payment chips and ID cards. It characterizes and conformance-tests the ISO/IEC 7816 electrical interface and transmission protocols, at high speed.
- Full ISO/IEC 7816-3 electrical characterization — supply, clock, I/O levels and timing
- T=0 and T=1 transmission protocols, ATR and error handling
- APDU-level command and response testing
- High-speed operation for fast characterization and conformance
At a glance
ci220 specifications
| Standards | ISO/IEC 7816 (contact smart cards); ISO/IEC 10373-3 test methods |
|---|---|
| Layers tested | Electrical interface, transmission protocol (T=0 / T=1), APDU |
| Use cases | Characterization, conformance and R&D for contact and dual-interface cards |
| Family | The contact counterpart to the ci230 contactless test system |
Test contact and contactless with cilab.
Talk to a cilab engineer about contact (ISO 7816) characterization and conformance with the ci220.
Request a demo
